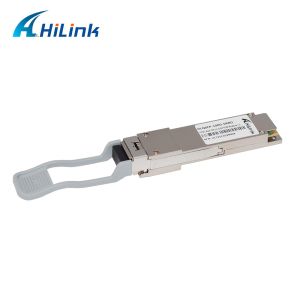

QSFP-100G- SRBD Dual Rate Multi-mode 850/900nm Duplex Lc PAM4
Optical Module
Hilink 100G QSFP28 SRBD transceiver is a parallel Quad Small Form-factor
Pluggable (QSFP28) Bi-Direction optical module. The module
integrates four host electrical data into two optical lanes (by
Dual Wavelength VCSEL Bi-Directional Optical Interface, 850nm and
900nm) to allow optical communication over a 2-fiber duplex LC
optical multi-mode fiber. Reversely, on the receiver side, the
module de-multiplexes 2 sets of optical input signal and converts
them to 4 channels of electrical data.
It is designed with form factor, optical/electrical connection and
digital diagnostic interface according to the QSFP28 Multi-Source
Agreement (MSA). It has been designed to meet the harshest external
operating conditions including temperature, humidity and EMI
interference. The module offers very high functionality and feature
integration, accessible via a two-wire serial interface.
| Item No. | HL-Q28-100G-SRBD | Vendor Name | Hilink |
| Form Type | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 850/900nm | Max Cable Distance | 150M |
| Interface | LC Duplex | DOM Support | Yes |
| Cable Type | MMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
- QSFP28 MSA compliant
- Support 100GE aggregate bit rates
- Support KP4 FEC @ 100G data rate
- Two independent full-duplex channels
- Up to 100m OM4 MMF transmission
- Operating case temperature: - 10 to 70 C @ 100G
- Single 3.3V power supply
- Maximum power consumption 4W
- LC optical connector
- RoHS-6 compliant
Applications
- 100GBASE Ethernet
- Data Center
- Infiniband HDR
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link,
Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie,
Zyxel, etc.
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in
2007,Specialize in optical network communications with over 10
years experience.
2." Credit is the basis, quality is the first",all our products are
new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink,
Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products
from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece
is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we
normally keeping in stock;
For large quantity, you'll get support and details from your sales
representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The
arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or
refund.
