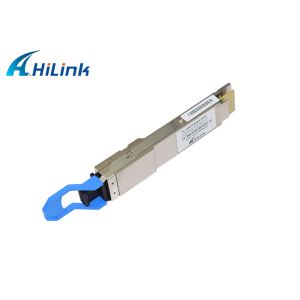

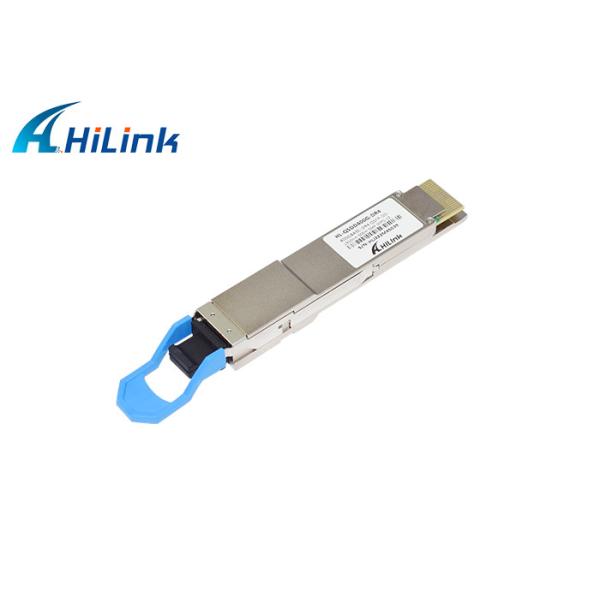

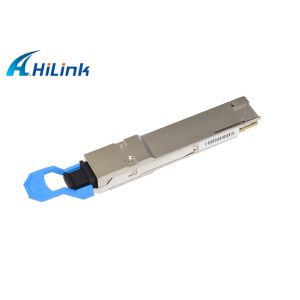

400G QSFPDD 1310nm 500m DR4 MPO-12 Fiber Optical Transceiver Modules

PRODUCT FEATURES

• • Compliant to QSFP-DD MSA

  • Parallel 4 Optical Lanes

  • IEEE 802.3bs 400GBASE-DR4 Specification compliant

  • Maximum power consumption 12W

APPLICATIONS

• • 400G Ethernet

  • Data Center Interconnect

  • Infiniband Interconnect

  • Enterprise Networking

DESCRIPTIONS

This product is a 400Gb/s QSFP-DD optical module designed for 0.5Km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data. An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP-DD DR4 module receptacle. Host FEC is required to support up to 0.5Km fiber transmission.
